High-Strength Drill Rods for Mining and Geological Exploration

Name: HighStrength Drill Rods for Mining and Geological Exploration
Brand: SHITAN
Price: 10 USD

China High-Strength Drill Rods for Mining and Geological Exploration wholesale

Brand Name : SHITAN

Model Number : ST

Certification : API

Place of Origin : HEBEI CHINA

MOQ : 1 PC

Price : 10-500usd

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20000 sets/month

Delivery Time : 5-8 working days

Packaging Details : Standarded export package

Product name : Water well drill pipe

Material : DTH

Use : Coal Mining,Well Drilling

Length : 1000 to 6000mm

Application : rock drilling

Advantage : Long use life,High Wear Resistant

Diameter (mm) : 76mm-140mm

Thread model : API 2 3/8 REG

Contact Now

High-Strength Drill Rods for Mining and Geological Exploration

Product Specifications

Attribute	Value
Product name	Water well drill pipe
Material	DTH
Use	Coal Mining, Well Drilling
Length	1000 to 6000mm
Application	Rock drilling
Advantage	Long use life, High Wear Resistant
Diameter (mm)	76mm-140mm
Thread model	API 2 3/8 REG

Product Description

Drill rods are core components that connect drilling rig power devices to drill bits, transmitting torque and drilling media while driving the drill bit. Widely used in geological exploration, water well drilling, mining, and oil/gas development.

Technical Specifications

Diameter (mm)	Thickness (mm)	Thickening type	Length (mm)	Thread	Board shank slot
76	5-8mm	IU	1000/1500/2000/2500/3000/4000/5000/6000	2 3/8 API REG	Double buckle Single buckle
89	6-9.35mm	IU	1000/1500/2000/2500/3000/4000/5000/6000	2 3/8 IF	Double buckle Single buckle
102	7-8.38mm	IU/IEU	1500/2000/2500/3000/4000/5000/6000	2 7/8 IF 3 1/2 REG	Double buckle Single buckle
114	6-9.35mm	IU	1500/2000/2500/3000/4000/5000/6000	2 7/8 IF 3 1/2 IF/REG	Double buckle Single buckle
127	9mm	IU	1500/2000/2500/3000/4000/5000/6000	3 1/2 IF	Double buckle Single buckle
140	8-12mm	IU	3000/4500/5000/6000	4 1/2 REG or 4FH	Double buckle Single buckle

Construction & Components

Drill rods consist of two main parts:

Rod body: Hollow high-strength alloy steel pipe for torque transmission and fluid conveyance, often with spiral grooves for enhanced slag discharge
Joint: Located at both ends with threaded connections (male/female designs) for quick docking, requiring high strength and sealing to prevent leaks

Core Functions

Transmit drilling rig torque and impact force to drive drill bits
Channel for flushing liquids (mud/water) to cool bits and remove debris
Connect drill string components to form stable drilling systems

Usage Considerations

Verify quality certifications (API standards) for materials and safety
Ensure joint design allows for easy maintenance and part replacement
Select manufacturers offering customization for special drilling conditions

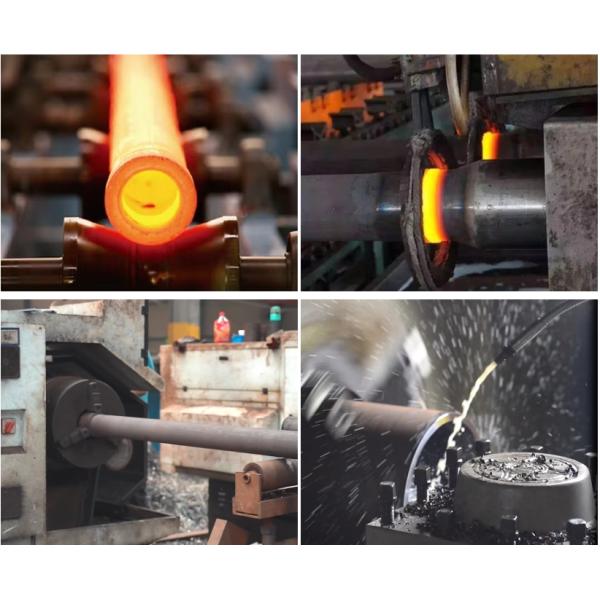

Product Images

High-Strength Drill Rods for Mining and Geological Exploration
